PVC Free Supreme Blackout Shades
PVC-Free Blackout Shades
To stylishly turn day into night, these textured, opaque polyester shades come in a range of decorator colors. Providing excellent insulation they’re also low-allergen, and resist both bacteria and mold.
Maximum dimensions:
92″ w x 144″ h
Chain Operated, Cordless, or Motorized
Thank you for all your help.”
866-230-4700
Supreme Blackout Shades have the look and feel of rich cloth. The interior facing side is a lightly textured, opaque polyester which comes in eight decorator colors. The exterior facing side has a white acrylic foamed backing (PVC free) to stop the heat. Dual color materials have a white outside acrylic backing for better heat rejection in the summer. In the winter they stop cold transfer through windows. These fabrics are bacterial and mold resistant.
Cleaning & Care

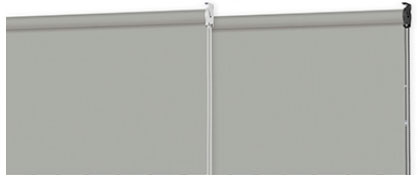

Manual Lift Systems

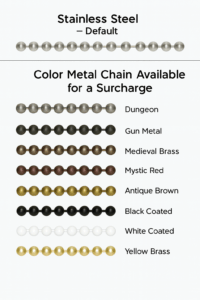

Our standard chain roller offers black or white clutch options with 4 bead chain finishes in white, black, bronze (metal) and steel (metal) Available in reverse roll. May be ordered with 3” or 4” Fascia or Designer Cassette, (regular roll only.)
Skyline hardware is available on a no headrail roller or in a Designer Cassette. Just choose your clutch color; white, satin nickel, ivory, bronze or black. All hardware is color coordinated, including clutch, bracket covers, bead chains and tensioners. Available in reverse roll.
The cordless system is available in white, satin nickel, ivory bronze and black with color coordinating brackets covers for a finished appearance on all cordless roller shades. Available in reverse roll. May be ordered with the Designer Cassette, (regular roll only).
Shades come with clear plastic handles that fit over the bottom bar to maintain cleanliness.
Dual Roller Shades are the perfect way to combine the light filtering and blackout fabrics on one set of brackets. The light blocking fabric rolls over the light filtering shade at night when you need privacy. May be ordered with pull chains or motors.
Motorization Options
- Motor and rechargeable lithium ion battery in motor casing are concealed in roller
- No special wiring requirements
- Rechargeable battery comes fully charged from factory, no external battery wand is required
- Factory programs upper and lower limit stops but does not program channels because that needs to be completed after shade installation.
- Average battery charge lasts 6-12 months under normal use one cycle per day
- Battery can be recharged up to 500 times
- Takes approximately 5 hours to recharge a depleted motor
- Recharge when shade starts running slow to avoid losing programming
- Shade will beep when the remote button is pressed
- Do not leave charger plugged in for more than 24 hours as it can prematurely age the battery
Simplicity 6 Channel Timer Remote The 6 Channel Timer Remote combines the functionality of a hand-held control with the convenience of a programmable timer. The 6C remote allows for up to 18 scheduled actions and comes with a holder to wall mount for easy access. Available in black.
Simplicity 14 Channel Remote The 14 Channel Remote can automate up to 14 different shades individually or 14 groups. The remote can be wall mounted for easy access. Available in black or white.
- Motorized lift system raises and lowers one shade or a group of shades with a push of a button
- Radio frequency motorization is excellent for large, hard to reach windows and multiple windows
- Simple, convenient, child-safe method of operating shade
- 6 Channel timer/remote combines functionality of 6 channel hand-held control and programmable timer
- Timer remotes allow for different scheduled actions each day of the week
- Manual function disables timer and remote can work as a 6 Channel remote
- 14 channel remote can operate up to 14 windows or groups of windows
- All remotes come with holder to mount to a wall for easy storage
- Range of remote is approximately 80 feet

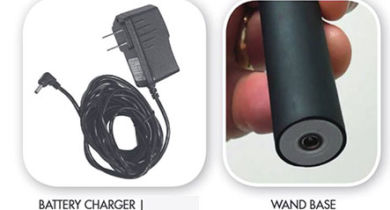

8.4 volt charger plugs into standard power outlet to recharge
Plugs into charging port of motor
Charger is black and comes with 13 feet of wire

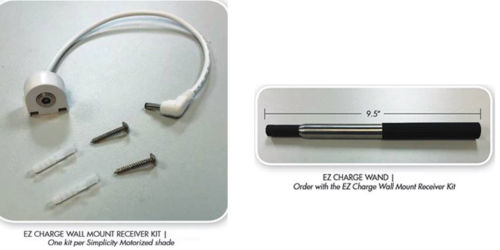

EZ Charge Extension Wand easily recharges your hard to reach Simplicity Rechargeable Shades. The wand extends up to 31” in length. Simply touch the magnetized wand tip to the port to attach. Then plug the charger into the base of the wand.
EZ Charge Wall Mount Receiver can be easily concealed by a valance
You need 1 EZ Charger extension wand per order (more can be ordered).
- The EZ Charge Wall Mount Receiver includes screws and anchors. These can be used for wood or drywall mounting.
- Extension cable plugs into charging port of Simplicity Rechargeable shades.
- Each shade will need an EZ Charge wall mount receiver.
Battery Charger – SOLD SEPARATELY. You must specify charger when ordering a Simplicity Rechargeable Motorized Shade. The charger plugs into the wand base. The 8.4 Volt charger requires a standard power outlet to recharge the motor. The charger is black and comes with a 156” wire. The dimensions are 1” wide x 2½” length x 13⁄4” deep.
The Simplicity Smart Controller powered by NEO Smart Blinds App is a small device that you install in your home that allows you to set automatic opening and closing times for all Simplicity motorized shades from your Apple or Android Smartphone, voice controlled Amazon, Google home automation device, tablet, or PC anywhere in world.
- Works with Apple and Android Smartphones
- Free downloadable app
- Compatible with previously installed Simplicity motorized shades
- Can schedule operation up to 14 shades in a single room or every shade throughout the house
GET STARTED IN 4 EASY STEPS
- Download the free NEO Smart Blinds App from Google Play Store or the Apple App Store and create an account.
- Purchase our palm sized Simplicity Smart WIFI Controller
- Plug into a central location with a strong WIFI signal
- Add your shades in the app
- Controller has same range as remote (150 feet) so one per floor is usually sufficient
Simplicity Smart Controller One box/2000 sq. ft recommended
Motors at a Glance
Rechargeable Batteries |
Headrail Options
Power Sources
Programming
|
Hiding The Roller
Reverse Roll
For a uniform appearance, choose the reverse roll option. The fabric rolls off the front of the roller tube, closer to the room, hiding the roller. No extra charge. Only available with no headrail.
Designer Cassette Fabric Insert
The cassette has a matching strip of roller shade fabric running along the front face of it to provide a continuous, all-fabric look for your window. Available in White, Satin Nickel, Ivory, Bronze and Black.
Designer Cassette Smooth Face
This is a clean and seamless way to hide a roller. Available in 5 hardware finishes: White, Satin Nickel, Ivory, Bronze, and Black.
Fascias
Metallic fascias placed in front of roller shades conceal the roller hardware and protect the fabric when the shade is fully raised. They are open to the top and back. Available in white, satin nickel, ivory, bronze, or black.
Standard 3” and 4” fascia are L shaped and cover the front and most of the underside. Skyline 4” fascia do not cover the underside.
3″ Fascias
4″ Fascias

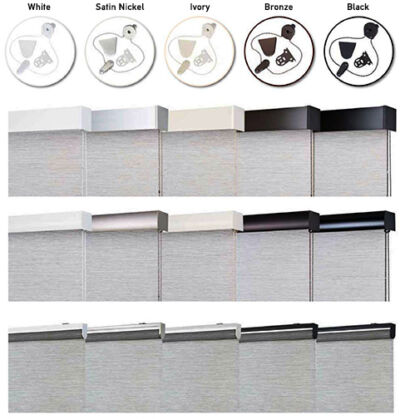

Skyline Hardware
Skyline Hardware in white, black and ivory is standard on all roller shades. When ordering shades with Skyline hardware all of the components are completely color coordinated all the way down to the tensioner.
Fabric Valance*
*Friction Fit Mounting System Only
Use the 4 1/2″ tall fabric valance to conceal both the roller and the rail for the Friction Fit Mounting System. The valance matches the shade fabric for a cohesive look. Cannot be used with any other roller shade system.
Friction Fit Mounting System
No Bracket Drilling Required!
Inside mount only | Max Width: 84″ | Minimum Depth: 2 1/8″
Pressure mounted system uses an aluminum rail designed with a high-tension spring. Installation brackets are pre-attached at the factory for easy installation on site.
To install, simply insert rail within the window opening and secure the lever. This increases the pressure to the ends of the rail, allowing for a snug fit. Smooth surfaces such as tile or metal will require use of included double sided adhesive.
- Mounting System available in white or black rail
- Cordloop, cordless roller or motorized
- Only cordless and motorized can use the designer cassette
- Cord loop has optional 4 ½” fabric valance to conceal roller & rail
- White, ivory & satin nickel clutches have a white rail & brackets
- Black or bronze clutches will have a black rail & brackets
Bottom Bar
Bottom Rails
The standard bottom rail is fabric wrapped with clear end caps. For a modern look, select an exposed bottom rail in white, black, vanilla, bronze or brushed Aluminum.
Specifications
The minimum size of a shade is 12″ x 12″
- Standard roller – 92″ wide x 144″ high
PVC Free Supreme Blackout Shades are shipped with all the necessary hardware. Our brackets are universal so shades can be mounted inside the frame, outside the frame or from the top down. Chain lengths are 3/4’s of the way down the shade. Please specify if you need longer chains.
DEPTH REQUIRED
Depth required depends on a combination of width, height, material ordered, lift system, and headrail option. Contact us for specific information about your particular order. Measure depth on double hung windows or sliding windows at the shallowest point. General guideline (Hardware minimums, does not include thickness of fabric. Add 1/8″ per 10″ of shade height.) Call for assistance.
Exposed Roll, Chain or Motor:
- Up to 90″ wide, side mount, 2 1/2″.
- Up to 90″ wide, ceiling mount, 2″.
- Over 90″ wide, side mount wide, 3″.
- Over 90″ wide, ceiling mount 2″.
Exposed Roll, Chain, Commercial
- Up to 90″ wide, side mount, 2 1/2″.
- Up to 90″ wide, ceiling mount, 2″.
- Over 90″ wide, side mount: 3″
- Over 90″ wide, ceiling mount: 2 5/8″
Exposed Roll, Smooth Lift Cordless:
- Up to 72″ wide, ceiling mount 1 1/2″
- Up to 72″ wide, side face mount, 2 1/4″
- Over 72″ wide, ceiling mount 1 3/4″
- Over 72″ wide, face mount, 2 3/4″
Fascia, Chain: 3″ or 4″ depending on chain size.
Fascia, Motorized: 4″
Designer Cassette , Chain, Motor, or Smooth Lift Cordless:
- 3 3/4″ flush
- 1″ shallow mount
FABRIC WIDTH:
Fabric width varies depending on lift system, shade size, and headrail option. Contact us for specific information about your particular order. General Guidlelines:
Exposed Roll or Fascia with Chain or Motor:
Up to 90″ wide,
- Inside Mount, fabric is 1 5/16″ narrower than the ordered width;
- Outside mount, fabric is 15/16″ narrower than ordered width;
Side or Exact Mount, fabric is 1 1/8″ narrower than ordered width.
Over 90″ wide,
- Inside Mount fabric is 1 5/8″ narrower than ordered width;
- Outside Mount, fabric is 1 1/4″ narrower than ordered width;
Side or Exact Mount, fabric is 1 7/16″ narrower than ordered width.
Exposed Roll, Smooth Lift Cordless Roller:
- Inside Mount, fabric is 13/16″ narrower than ordered width;
- Outside Mount, fabric is 7/16″ narrower than ordered width;
- Side Mount, fabric is 1 5/16″ narrower than ordered width;
- Exact mount, fabric is 5/8″ narrower than ordered width.
Designer Cassette, Chain or Motor:
- Inside Mount, fabric is 1 1/16″ narrower than ordered width;
- Outside Mount, fabric is 11/16″ narrower than ordered width;
- Side Mount, fabric is 1 9/16″ narrower than ordered width;
- Exact Mount, fabric is 7/8″ narrower than ordered width.
Designer Cassette, Chain, Motor:
- Inside Mount, fabric is 1 1/16″ narrower than ordered width;
- Outside Mount, fabric is 11/16″ narrower than ordered width;
- Side Mount, fabric is 1 9/16″ narrower than ordered width;
- Exact Mount, fabric is 7/8″ narrower than ordered width.
Designer Cassette, Smooth Lift Cordless:
- Inside Mount, fabric is 1 5/8″ narrower than ordered width;
- Outside Mount, fabric is 1 1/8″ narrower than ordered width;
- Side Mount, fabric is 1 1/4″ narrower than ordered width;
- Exact Mount, fabric is 1 7/16″ narrower than ordered width.
Brackets
Use with R8 Clutch or 12V motor
- Shades up to 78″ wide (depending on height and fabric type)
- Spear for clutch or motor is 3/8″
- Inside mount 1/2″
- Height (face mounting or ceiling mount space needed) 1 1/2″
- Clutch diameter 1 3/4″
- Roller diameters: 1″,1 1/4″, or 1 1/2″
- Bracket protrudes from surface 1 1/2″
- Inside mount total depth needed at least 2 3/8″
Use with R8 Clutch or 12V motor
- Shades up to 78″ wide (depending on height and fabric type)
- Roller diameters: 1″,1 1/4″, or 1 1/2″
- Spear for clutch or motor is 3/8″
- Inside mount 1/2″
- Height (face mounting or ceiling mount space needed) 1 1/2″
- Clutch diameter 1 3/4″
- Bracket protrudes from surface 1 7/8″
- Inside mount total depth needed at least 2 7/8″
Use with R16 Clutch
- Shades 78″–110″ wide (depending on height and fabric type)
- Roller diameters: 1 1/2″, 2″
- Spear for clutch is 5/8″
- Inside Mount 1/2″
- Height (face mounting or ceiling mount space needed) 2 1/2″
- Clutch diameter 2 1/2″
- Bracket protrudes from surface 1 5/8″
- Inside mount depth needed 2 7/8″
Use with Super Clutch (R40), R24 or R16
- Shades over 110″ wide (depending on height and fabric type)
- Roller Diameters: 1 1/2″, 2″, or 2 3/8″
- Spear for clutch is 5/8″
- Foot of bracket is 1/2″
- Height (face mounting or ceiling mount space needed) 2 1/2″
- Clutch diameter 2 1/2″ (R16) or 3 1/2″ (R24)
- Bracket protrudes from surface 2 1/8″
- Inside mount total depth needed for R16 at least 3 3/8″; for R24 or R40 3 7/8″
Use with R16
- Shades 78″ to 110″ wide and no more than 120″ tall (depending on height and fabric type;)
- Roller diameters: 1 1/2″ or 2″
- Can be used with Somfy or MC 400 series motors
- Spear for clutch is 5/8″, 1 1/2″ from bottom of bracket
- Inside mount total depth needed at least 3″; have to drill holes in brackets
Use with Super Clutch (R40), R16, R24 clutches, Somfy 110V HW or plug in motors
- Shades over 110″ wide, or narrower shades over 120″ tall (depending on height and fabric type)
- If used with motors, factory has to re-fit with the crown and pressure pin parts
- Spear for clutch 5/8″ wide, 2″ from bottom of bracket
- Inside mount total depth needed at least 4″; have to drill holes in brackets
In daytime use solar shades to reduce heat & glare while preserving your view, then roll the blackout shade over the solar shade for nighttime privacy.
Use with SL8 and SL16 Skyline style clutches
- Available in black or white
- Minimum Depth required to mount top down: 3″
- Depth required for flush mount: 3″
- Minimum Depth for side mount: 1”
- Height of bracket is 5″
- Top shade (light blocking) must be ordered Reverse Roll and lies closer to room
- Bottom shade (transparent) must be ordered as Regular Roll and lies closer to window
- Center of top roller is 1 7/8″ from ceiling
- Center of bottom roller is 5″ from ceiling
- Chains go on the opposite ends of each shade
Performance
Double Glazing | Black Silver Screen | Black Common Screen | Dark Grey Silver Screen | Dark Grey Common Screen | White Silver Screen | White Common Screen | Beige Silver Screen | Beige Common Screen | Light Grey Silver Screen | Light Grey Common Screen | |
Solar Transmission | – | 4% | 4% | 4% | 4% | 7% | 23% | 6% | 18% | 6% | 15% |
Solar Reflection Outside | – | 74% | 6% | 70% | 9% | 72% | 66% | 70% | 66% | 69% | 53% |
Light Transmission | – | 4% | 4% | 4% | 4% |
7% |
22% |
6% |
16% |
6% |
12% |
Light Reflection Outside | – | 72% | 6% | 69% | 10% | 70% | 74% | 68% | 65% | 68% | 58% |
UV Transmission | – | 4% |
4% |
4% |
4% |
6% |
6% |
5% |
5% |
6% |
6% |
Openness Factor | – | 3% |
3% |
4% |
4% |
5% |
5% |
4% |
4% |
4% |
4% |
Color Rendering Index | – | 100 |
100 |
100 |
100 |
100 |
94 |
99 |
88 |
99 |
93 |
Light Transmission * | 78% | 3% | 3% | 3% | 3% | 6% | 15% | 5% | 14% | 5% | 11% |
g-value* | 71% | 22% | 51% | 24% | 50% | 24% | 28% | 25% | 31% | 25% | 33% |
U-value in W/m2k | 2.6 | 1.5 | 1.8 | 1.5 | 1.8 | 1.5 | 1.8 | 1.5 | 1.8 | 1.5 | 1.8 |
Width in CM | – | 220 | – | 220 | – | 220 |
– |
220 |
– |
220 |
– |
Weight in g/m2 | – | 400 | – | 400 | – | 400 | – | 400 | – | 400 | – |
Thickness in MM | – | 0,5 | – | 0,5 | – | 0,5 | – | 0,5 | – | 0,5 | – |
FR according to standard NFP 92503 specification M1 | – | yes | – | yes | – | yes | – | yes | – | yes | – |
* Calculation with double clear glazing according to EN 410 and ISO 15099 without ventilation. |
Fire Rating
NFP 92503 specification M1
M1 NFPA 701
ISO 6941
BS5867 Part2 type B
These shades are lead free.
- (Photo 1) Decide whether you want the shade mounted inside the frame of the opening or outside the opening. An inside mount can look cleaner, but you may want to order outside mount if there are obstructions, if you want more complete coverage, or if you want to cover more than one opening with a shade.
- (Photo 2) Always use a steel measuring tape.
- (Photo 3) Measure to the nearest 1/8”. Round DOWN, not UP, if it is 1/16th over.
- Tell us raw measurements. Do not take your own deductions.
- Always give width before height
- IT IS ESPECIALLY IMPORTANT to take note if any of the adjoining shades meet at a 90% angle, as one or both shades may need to be cut narrower to make sure the brackets don’t conflict with one another. We recommend that you order only one of the corner shades, and order the second one after you have installed the first one to make sure the brackets don’t impede each other.
- And always, feel free to call us for help and email us photos of where you are installing.
- Measure width at top, middle, and bottom (A) Tell us the raw measurements. Let us take the deduction for fit. We will tell you fabric width.
- Measure the height (B) If not ordering the shade to drop all the way down, let us know.
To Fit Brackets on Trim/Posts
- Measure width of the outside of the post to the outside of the post at the top, middle, and bottom (A)
- Measure width of the inside of the opening (B) to check for fabric overlap. We will tell you fabric width.
- Measure the height (C) If not ordering the shade to drop all the way down, let us know.
- Decide where you want the fabric to overlap on each side. Mark on the post/trim and measure this width (A). We will tell you how much room the shade needs to fit.
- Measure the height (B) If not ordering the shade to drop all the way down, let us know.
- Measure the width of the full span of space you have to fit the shades in at the top, middle, and bottom.
- Measure the end to center post and center to center post widths at the top, middle, and bottom. Tell us the raw measurements. Let us take the deduction for fit.
- Measure the width of the inside of the opening to check for fabric overlap. We will tell you fabric width.
- Measure the height – let us know if you’re not ordering the shade to drop all the way down.
