Indoor And Outdoor Shade Brackets

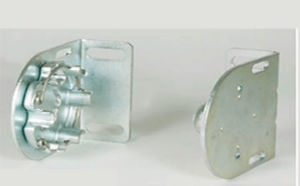

Shade Brackets for Chain, Battery Motors, Somfy Motors, Dual Brackets

360 CHAIN OPERATED SHADE BRACKETS
R-8 Chain Shade Brackets

Use with R-8 Clutch or 12V motor

  • Shades up to 78″ wide (depending on height and fabric type)
  • Spear for clutch or motor is 3/8″
  • Inside mount 1/2″
  • Height (face mount or ceiling mount space needed) 1 1/2″
  • Clutch diameter 1 3/4″
  • Roller diameters: 1″,1 1/4″, or 1 1/2″
  • Bracket protrudes from surface 1 1/2″
  • Inside mount Total depth needed at least 2 3/8″
380 SHADE BRACKET (EXTENSION BRACKET)

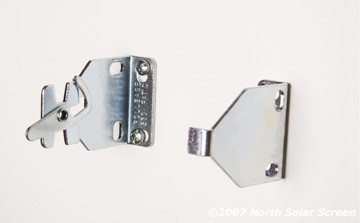

R-8 Extension Bracket

Use with R8 Clutch or 12V motor

  • Shades up to 78″ wide (depending on height and fabric type)
  • Roller diameters: 1″,1 1/4″, or 1 1/2″
  • Spear for clutch or motor is 3/8″
  • Inside mount 1/2″
  • Height (face mounting or ceiling mount space needed) 1 1/2″
  • Clutch diameter 1 3/4″
  • Bracket protrudes from surface 1 7/8″
  • Inside mount total depth needed at least 2 7/8″
560 CHAIN OPERATED SHADE BRACKETS
R-16 chain shade brackets

Use with R16 Clutch

  • Shades 78″110″ wide (depending on height and fabric type)
  • Roller diameters: 1 1/2″, 2″
  • Spear for clutch is 5/8″
  • Inside Mount 1/2″
  • Height (face mounting or ceiling mount space needed) 2 1/2″
  • Clutch diameter 2 1/2″
  • Bracket protrudes from surface 1 5/8″
  • Inside mount depth needed 2 7/8″

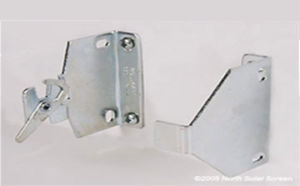

SUPER CLUTCH (CAN BE EXTENSION BRACKET FOR 560)

Use with Super Clutch (R40), R24 or R16

  • Shades over 110″ wide (depending on height and fabric type)
  • Roller Diameters: 1 1/2″, 2″, or 2 3/8″
  • Spear for clutch is 5/8″
  • Foot of bracket is 1/2″
  • Height (face mounting or ceiling mount space needed) 2 1/2″
  • Clutch diameter 2 1/2″ (R16) or 3 1/2″ (R24)
  • Bracket protrudes from surface 2 1/8″
  • Inside mount total depth needed for R16 at least 3 3/8″; for R24 or R40 3 7/8″
BRACKETS FOR SPRING TENSION ROLLER SHADES
UNIVERSAL-INSIDE OR OUTSIDE MOUNTS
SB 40
  • Maximum Shade Width: 79″
  • Height: 1 1/2″
  • Inside Mount Mounting Width: 1/2″
  • Brackets protrude from surface: 1 1/2″
  • Ceiling Mount Mounting Width: 1 3/8″
  • Roller diameter: 1″
SB 41
  • Shade Width: 79-120″
  • Height: 1 1/2″
  • Inside Mount Mounting Width: 1/2″
  • Brackets protrude from surface: 1 3/4″
  • Ceiling Mount Mounting Width: 1 3/8″
  • Roller diameter: 1 3/8″
SB 42
  • Shade Width: 120″+144″
  • Height: 1 5/8″
  • Inside Mount Mounting Width: 3/4″
  • Brackets protrude from surface: 2 3/4″
  • Ceiling Mount Mounting Width: 1 1/2″
  • Roller diameter: 1 3/4″
FASCIA BRACKETS, 3″

Use with R16

  • Shades 78″ to 110″ wide and no more than 120″ tall (depending on height and fabric type;)
  • Roller diameters: 1 1/2″ or 2″
  • Can be used with Somfy or MC 400 series motors
  • Spear for clutch is 5/8″, 1 1/2″ from bottom of bracket
  • Inside mount total depth needed at least 3″; have to drill holes in brackets
FASCIA BRACKETS, 4″
fascia 4inch brackets

Use with Super Clutch (R40), R16, R24 clutches, Somfy 110V HW or plug in motors

  • Shades over 110″ wide, or narrower shades over 120″ tall (depending on height and fabric type)
  • If used with motors, factory has to re-fit with the crown and pressure pin parts
  • Spear for clutch 5/8″ wide, 2″ from bottom of bracket
  • Inside mount total depth needed at least 4″; have to drill holes in brackets
DUAL ROLLER SHADE BRACKETS

Ceiling or Undermount

Mount two shades, one transparent and the other room darkening on one bracket for economy of space.

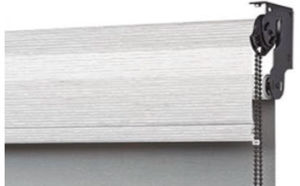

shade pully

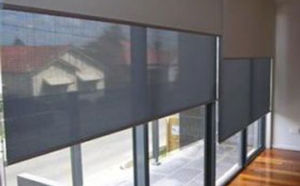

Dual shades hanging with view out

Use with SL8 and SL16 Skyline style clutches

  • Available in black or white
  • Minimum Depth required to mount top down: 3″
  • Depth required for flush mount: 3″
  • Minimum Depth for side mount: 1”
  • Height of bracket is 5″
  • Top shade (light blocking) must be ordered Reverse Roll and lies closer to room
  • Bottom shade (transparent) must be ordered as Regular Roll and lies closer to window
  • Center of top roller is 1 7/8″ from ceiling
  • Center of bottom roller is 5″ from ceiling
  • Chains go on the opposite ends of each shade

In daytime use solar shades or film shades to reduce heat & glare while preserving your view, then roll the blackout shade over the other shade for nighttime privacy.

Outdoor Crank Brackets

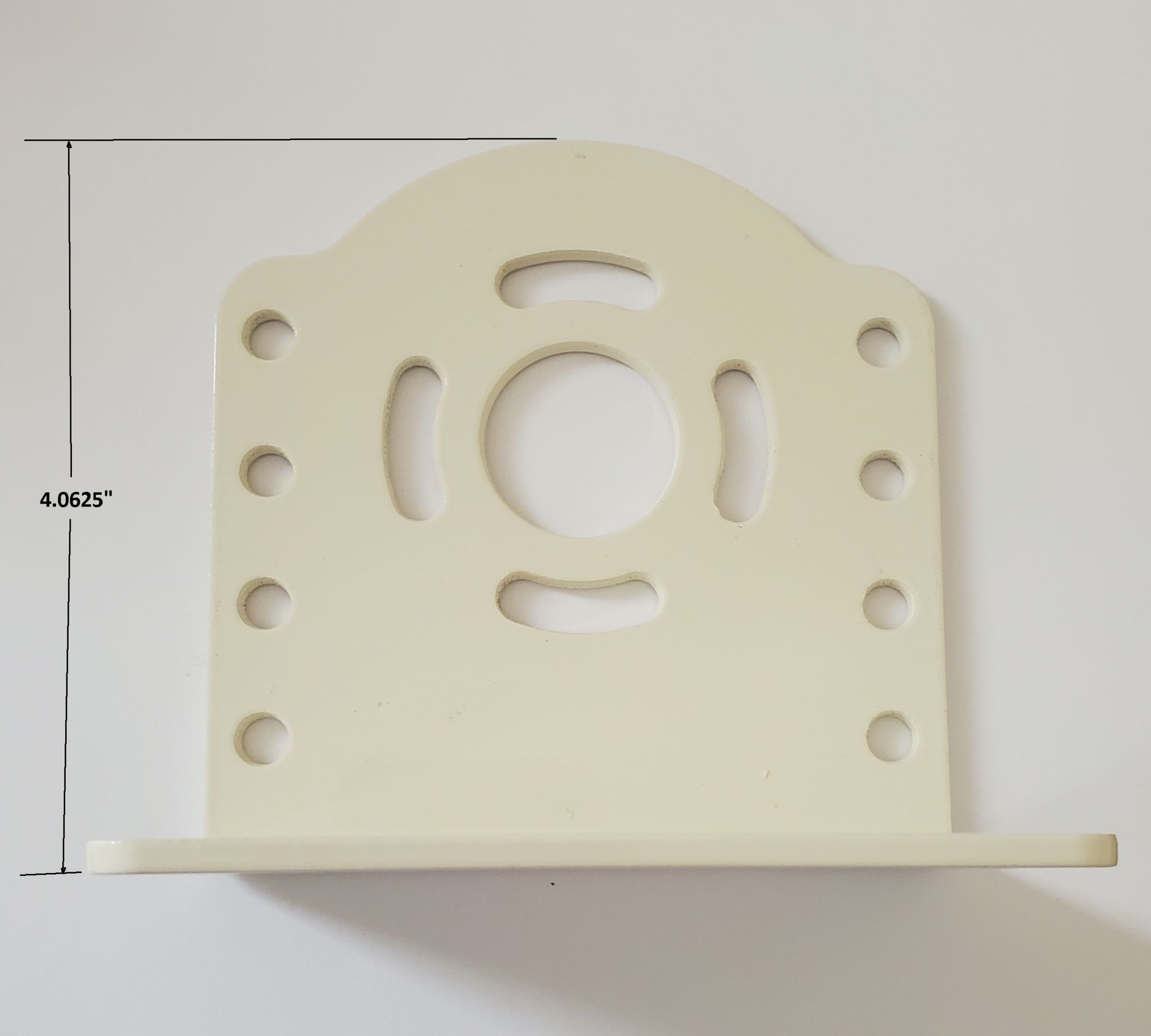

BABY GRANDE CRANK BRACKETS
outdoor baby-grande-crank-brackets
  • Foot print of bracket is 2 ½” x 4”
  • Shade bracket protrudes out from wall approximately  4”

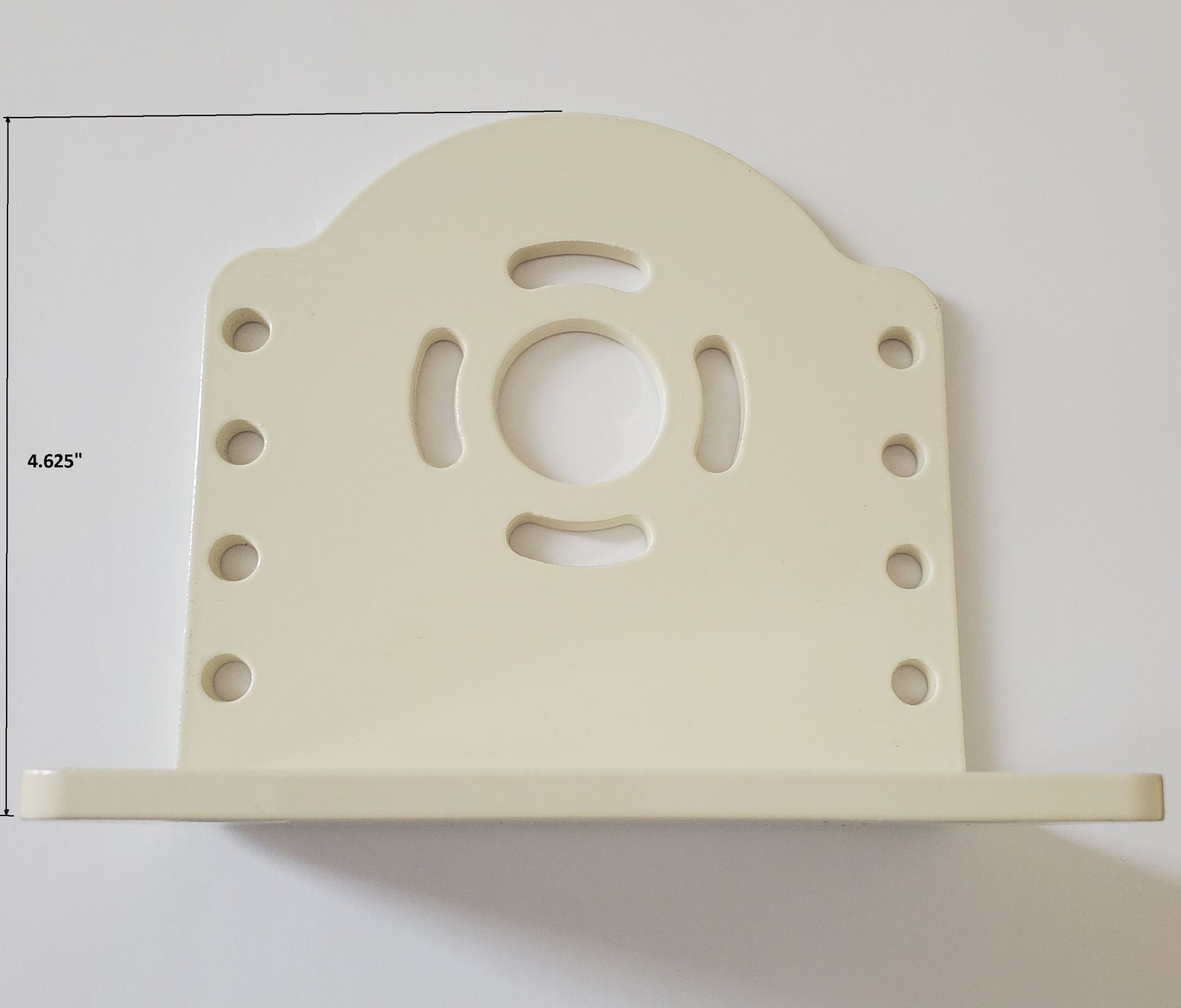

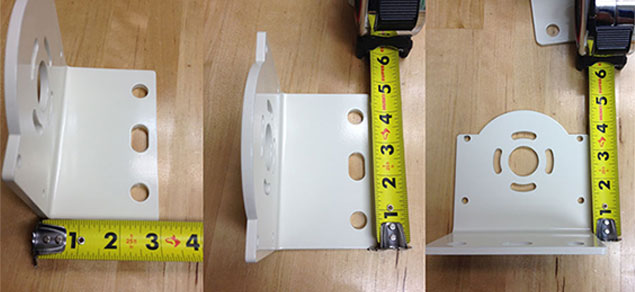

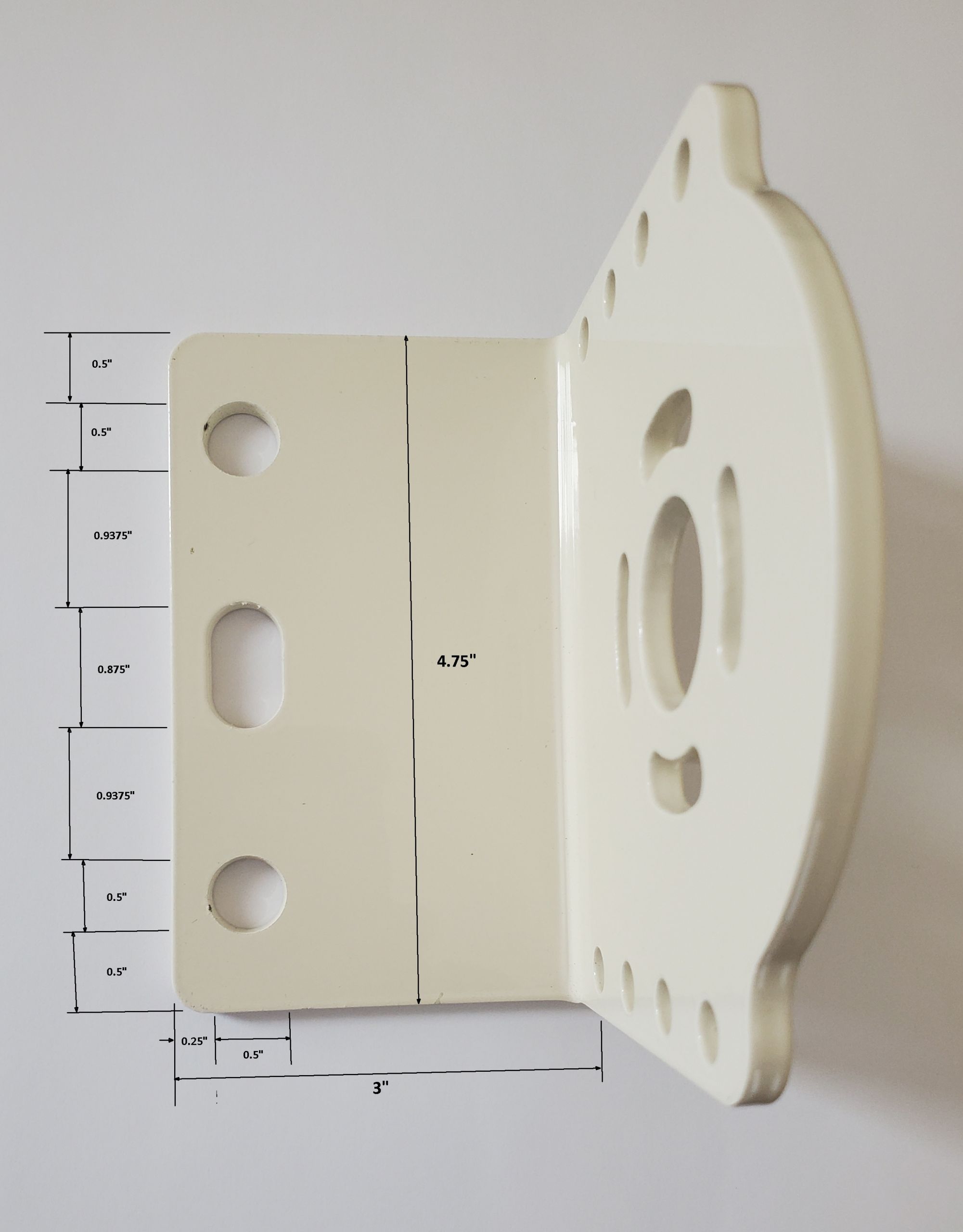

GRANDE CRANK BRACKETS
  • Foot print of bracket is 3” x 4 ½”
  • Shade bracket protrudes out from wall approximately 4 ½”

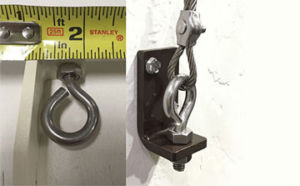

WALL MOUNTED CABLE BRACKET
wall mounted cable bracket
  • Attaches bottom of cables to walls or posts
  • Protrudes 1” from mounting point
  • Holds cable ¾” from mounting point
  • Allows shade to come down to within 1 ¾” from floor
