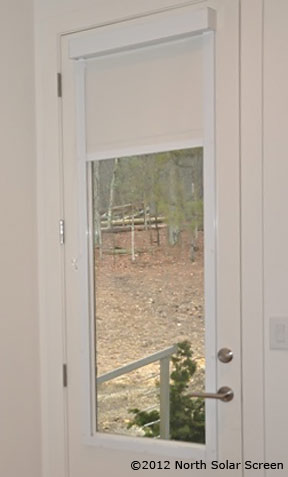

Modular Light Sealed

Modular Light Sealed Blackout Shades

These roller shades seals out all side and back light.

Our total light sealed systems seal out all side light and drafts on the sides, bottom and top of a shade. Ideal for oversized windows, can be inside or outside mounted. Popular for motorized shades.

Maximum Dimensions:
144″w x 134″h

Chain operated or motorized.

Save 10%
On All Shade Purchases
No Order Minimum
Ends December 4, 2020
Call Now To Order

866-230-4700

We will guide you through the entire process
Modular Light Sealed System Description
  • For chain operated or motorized roller shades
    up to 144″ wide x 134″ high.
  • For both inside and outside frame mounts
  • Light blocking fascia, side and bottom channels available in white, anodized, bronze and black, can be purchased separately.
  • Use with Economical Vinyl/Fiberglass Blackout Shades
    or PVC Free Supreme Blackout Shades.
  • All items are priced individually.
Care & Warranty

Cleaning & Care

Warranty

Fascia Color Options

See specification tab for light blocking profiles

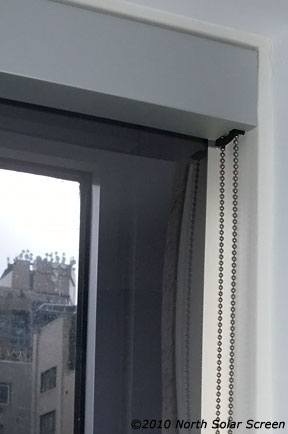

Anodized Fascia Inside Mount

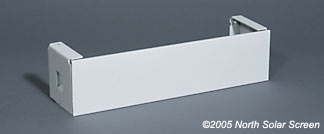

white fascia bracket

Fascia White

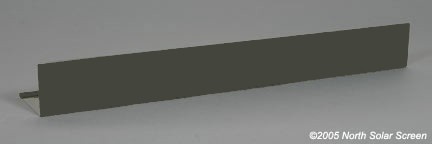

bronze fascia bracket

Fascia Bronze

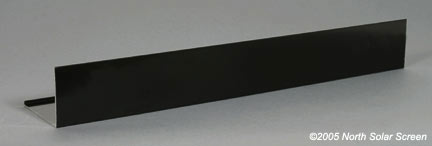

black fascia

Fascia Black

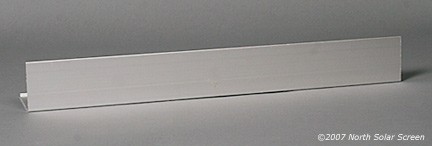

anodized fascia bracket

Anodized Fascia

Motorization Options

New Li-ion Rechargeable Battery Motors by Rollease

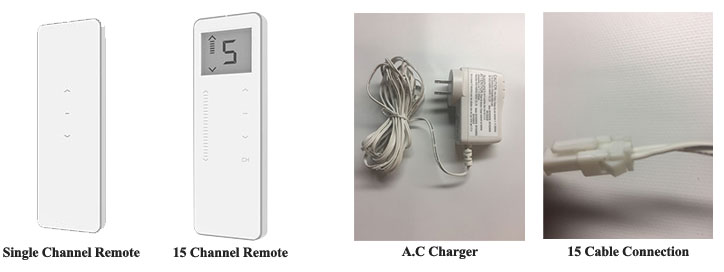

lion remotes and chargers

Order with the Pulse Hub to control you shades with Alexa.

These radio control rechargeable battery motors are user friendly. They are available in 2 different sizes to accommodate:

MEDIUM: up to 84”w x 84”h
LARGE: up to 120”w x 120”h

Features
  • Motor is inside roller, your choice left or right
  • 12V built in Li-ion battery pack with integrated charge management
  • Has a small antenna
  • Has a wire that plugs into a cable to recharge
  • Comes with 12 feet of cable
  • You need to purchase the AC charger to plug into an outlet
  • Batteries could last up to 1.5 years under normal use: one cycle per day
  • Single channel or a 15 channel remotes available for multiple shades
  • A “favorite position” can be pre-set and recalled at any time.
  • If voltage drops to less than 10V motor will beep to prompt charging
  • Levelling control feature allows precise positioning of multiple shades for perfect alignment.
  • Charge motor for 6 hours using recommended AC charger before first use
SOMFY Battery Operated Radio Motor

Somfy 12V Battery Operated motor with reloadable Battery wand. Operates with handheld or wall mounted single or multi channel remotes. Transformers available to save on batteries, as well as timers for the ultimate in convenience.

  • Powered by a Battery Wand that uses 8 Lithium Batteries. (Batteries are not rechargeable)
  • Multi channel remotes can operate up to 100 shades. The last button opens and closes all simultaneously.

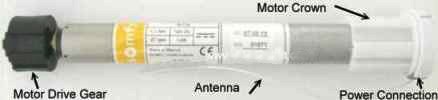

smart motor

Round Radio Head Motor

Battery Wand

Reloadable Battery Wand

Somfy remotes

Radio Remotes

Wall Mounted Wireless Switch

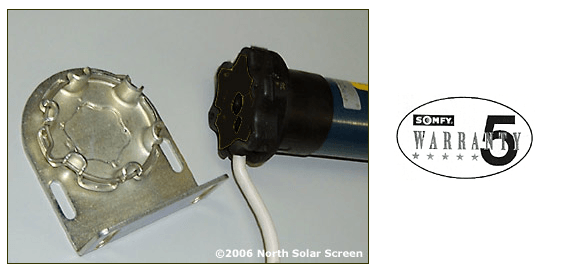

110V Plug In Motor With Radio Remote

Plug in smart motor

Motor plugs into Standard 110V Outlet, shipped with 6 feet of wire and a plug, special order longer wire.
(Do not shorten power cables to less than 42″ because the antenna is in the cable and the motor will not work if the antenna is cut.)

Motor is inside shade roller, on right or left your choice, only power cord sticks out.
Each shade is controlled by a hand held remote or wireless wall switch.
Control single or multiple shades by pressing a button, shade can be set to stop at a mid point or run to the limit stops

Motors use about 1.5 amps, remote range 100 ft.
To hardwire to a junction box install a shut off switch for each motor so you can disconnect each motor from power source to program.

Light Blocking Fascia, Side Channels and Bottom Channel Specifications

Light Blocking Fascia

  • Seals out light from behind the roller
  • 3″ high x 3″ deep for smaller or battery operated shades
  • 4″ high x 4″ deep for larger shades and other motorization

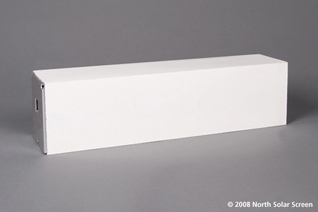

Front – White Fascia

Back – White Fascia

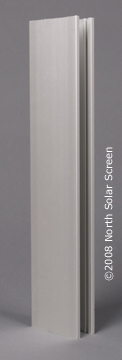

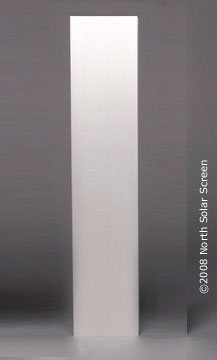

Side Channels – Front view

  • 2 1/2″ x 3/4″

Side Channels – Front view

Side Channels – Slot

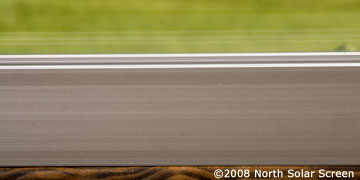

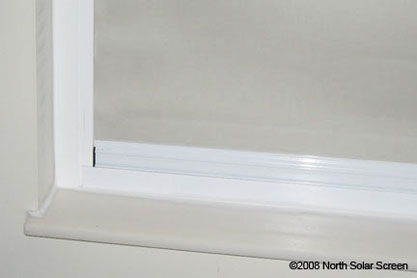

Bottom Channel

Seals out bottom light

  • Actually a side channel turned upwards that the shade drops into
  • 2 1/2″ high
  • Available in white, anodized, bronze and black

Light Blocking Fascia Profiles

This fascia acts like a cassette box. However, unlike a cassette it flips open should you need to access the shade.

3 inch Dual Fascia

3 inch Dual Fascia

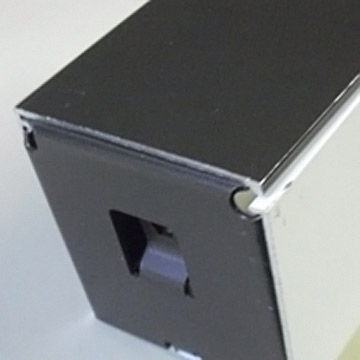

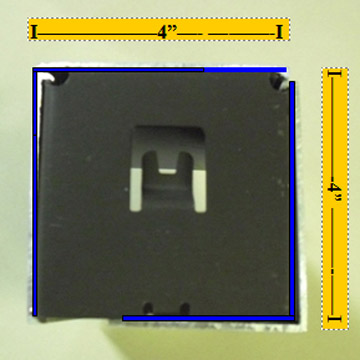

4 inch Dual Fascia

4 inch Dual Fascia

Measuring Videos
Inside Frame Mount
Outside Frame Mount
Measuring Instructions
Materials needed for measuring
  • Decide whether you want the shade mounted inside the frame of the opening or outside the opening. An inside mount can look cleaner, but if there are obstructions (photo 1) if you want more complete coverage, you may want to order outside mount, or if you want to cover more than one opening with a shade.
  • Always use a steel measuring tape. (photo 2)
  • Measure to the nearest 1/8” (photo 3) Round DOWN, not UP, if it is 1/16th over.
  • Tell us raw measurements. Do not take your own deductions.
  • Always give width before height
  • IT IS ESPECIALLY IMPORTANT to take note if any of the adjoining shades meet at a 90% angle, as one or both shades may need to be cut narrower to make sure the brackets don’t conflict with one another.  We recommend that you order only one of the corner shades, and order the second one after you have installed the first one to make sure the brackets don’t impede each other.
  • And always, feel free to call us for help and email us photos of the site.
Inside Frame Mount
Height and width for measuring inside mount window shades
  • Measure width at top, middle, and bottom (A) Tell us the raw measurements. Let us take the deduction for fit. We will tell you fabric width.
  • Measure the height (B) If not ordering the shade to drop all the way down, let us know.
Outside Frame Mount

To Fit Brackets on Trim/Posts

measuring for outside mount window shades
  • Measure width of the outside of the post to the outside of the post at the top, middle, and bottom (A)
  • Measure width of the inside of the opening (B) to check for fabric overlap. We will tell you fabric width.
  • Measure the height (C) If not ordering the shade to drop all the way down, let us know.
To Order by Fabric Width
Ordering by fabric width diagram
  • Decide where you want the fabric to overlap on each side. Mark on the post/trim and measure this width (A). We will tell you how much room the shade needs to fit.
  • Measure the height (B) If not ordering the shade to drop all the way down, let us know.
To Cover Multiple Openings in a Row
wall of windows for measuring
  • Measure the width of the full span of space you have to fit the shades in at the top, middle, and bottom.
  • Measure the end to center post and center to center post widths at the top, middle, and bottom. Tell us the raw measurements. Let us take the deduction for fit.
  • Measure the width of the inside of the opening to check for fabric overlap. We will tell you fabric width.
  • Measure the height If not ordering the shade to drop all the way down, let us know.
SKU: N/A.

Modular Light Sealed Fiberglass Vinyl Blackout Samples

$0.00

Clear
SKU: N/A.

Modular Light Sealed PVC Free Supreme Blackout Sample

$0.00

Clear
Installing Indoor Roller Shades – Inside Frame Mount
Installing Indoor Roller Shades – Outside Frame Mount
Somfy RTS Motor Programming Instructions – Limit Setting
Programming Li-Ion Battery Motors/Remotes
Installation PDFs
Repair/Replace PDFs
Programming/Wiring PDFs
Lion
Somfy
Woman owned and operated. Designing Energy Saving Shades since 1992
